Digital Gauges

• Measure hard disk media flatness.
• Measure camshaft and motor shaft displacement.
• Measure height/thickness in a small space such as base plate.

Sony Digital Gauges - Magnescale Digital Gauges

Popular models: DK812R5, DK812FR5, DK812FR (BK812BFR), DK812LR, DT12P, DT12N, DG-155BP, DG-25BN, DG-50BP, DL-60BR, LG20-2 (LH51-201), LT10A-105B (LT10-105B), LT10A-205B (LT10-205B), LT11A-101B, LT20-201C, LT30-1GB, MG10-P1, MG20-DK, MG30-B1, GB-25A (SR128-025), GB-30A (SR128-030), SR128-085, U60B-F

Measuring Unit

Magnescale digital gauge (Sony digital gauge) is an electromagnetic system and hence its accuracy is less affected by condensation, contamination and vibration.

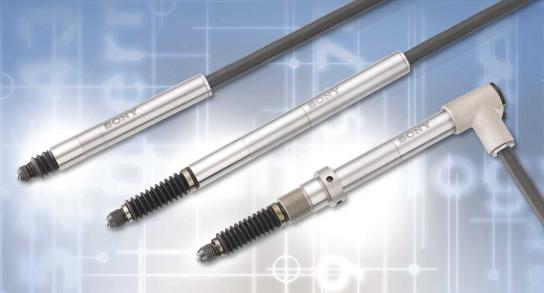

DK Series
Resolution: 0.1 um or 0.5 um
Range: 2 mm or 12 mm
Body: Straight or Right Angle, With or Without Flange

DE Series
Resolution: 0.1 um
Range: 12 mm or 30 mm

DG Series
Resolution: 0.5 um
Range: 5.2 mm, 10 mm, 25 mm, 50 mm, 100 mm, 155mm or 205 mm

DT Series
Resolution: 5 um
Range: 32 mm
Actuation: With or without pneumatic

DL Series
Resolution: 5 um or 10 um
Range: 10 mm, 30 mm or 60 mm

Digital Scale Series
Resolution: 0.5 um
SR118 Range: 15-260mm, SR128 (GB-A) Range: 50-2200, SR138 (GB-ER) Range: 50-2200mm

Display (Digital Readout DRO)

LT10A Series (for DT12, DT32)
Resolution: 5 um, 10um
Channel: 1 channel or 2 channels
I/O: BCD, RS-232C, or none.

LT11A Series (for DT512)
Resolution: 1 um, 5 um, 10um
Channel: 1 channel or 2 channels
I/O: BCD, RS-232C, or none.

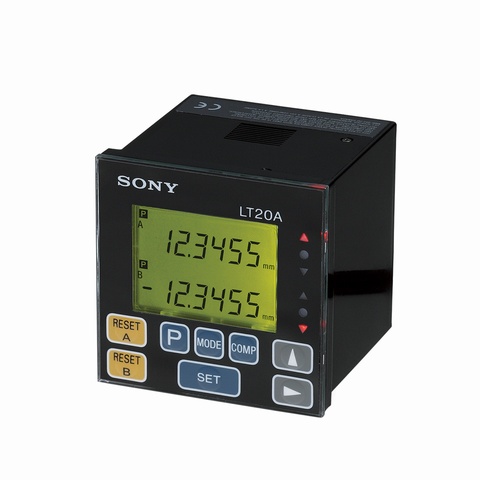

LT20A Series (for DG, DL)
Resolution: 0.5 um, 1 um, 5 um, 10um
Channel: 1 channel or 2 channels
I/O: BCD, RS-232C, or none.

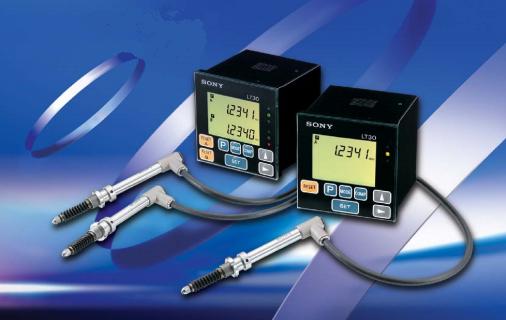

LT30 Series (for DK, DE-BR with adaptor)
Resolution: 0.1 um
Channel: 1 channel or 2 channels
I/O: BCD, RS-232C, or none.

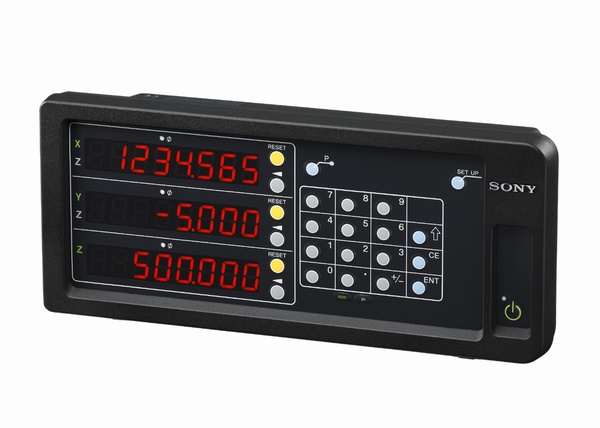

LG Series (7 digit display) Can connect with SR138 (GB-ER), SJ300, SJ700A, SL110/130, SR118, SR74, SR84, DG, DK, DT
Resolution: 0.1 um
Channel:
LG20-1 = Input 1 channel, Display 1 channel
LG20-2 = Input 2 channels, Display 2 channels
LG20-3 = Input 3 channels, Display 3 channels

LT100 Series
Resolution: 0.5 um, 1 um, 5 um, 10um
Channel: Input 10 channels, Display 2 channels

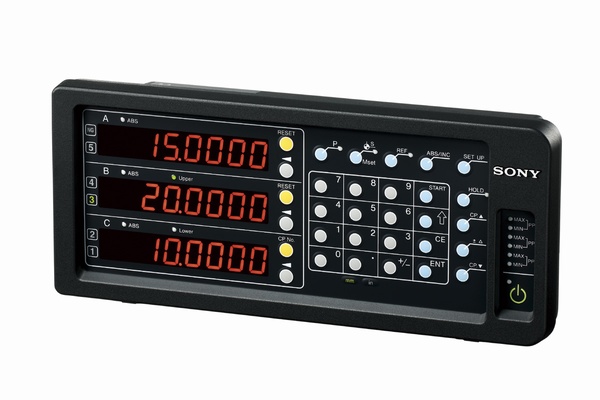

LY Series (7 digit display)
Resolution: 0.1 um
Channel:
LY51 = Input 1-2 channels, Display 1 channel
LY52 = Input 1-2 channels, Display 2 channels
LY71 = Input 1-2 channels, Display 3 channels
LY72 = Input 1-3 channels, Display 3 channels
I/O: BCD and/or RS-232C (configurable)

LH Series (7 digit display)
Channel: Display 1, 2, 3 channels

Digital Indicator (Measuring Unit with Display)

U Series
Resolution: 1 um
Range: 12 mm, 30 mm, 60 mm
I/O: RS-232C
Power Supply: AC adaptor or battery pack

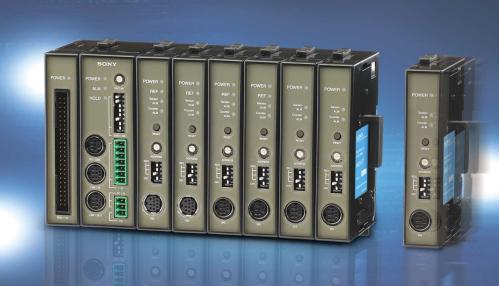

Interface Unit (No Display)

MG Series
Resolution: 0.1um, 0.5 um, 1 um, 5 um, 10um
Channel: Upto 64 channels
I/O: RS-232C with or without BCD

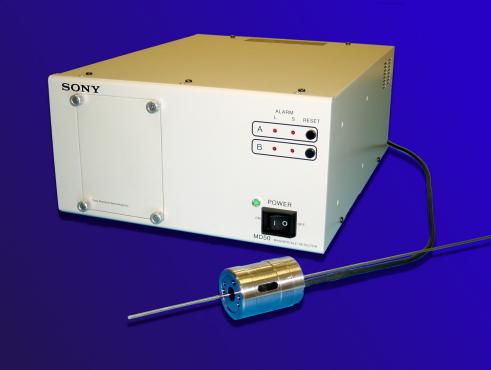

Rolling Mill

Rolling Mill
Head HA-705LK
Scale MSS-976R
Interpolator MD50-2N, MD50-4N

Citizen Digital Gauges

Popular models: IPD-SC1RP, IPD-P510/2M-03N, IPD-SC1-IO2

Detector (Digital Dial Gauges)

IPD-P510
Range: 10mm
Resolution: 0.5um
Accuracy: 1um
Cable Length: 2m

IPD-B505
Range: 5mm
Resolution: 0.5um
Accuracy: 1um

Counter (Display Unit)

Counter IPD-FCC : 2 channel with sum/difference function

Counter IPD-SC1R for IPD-P510 and IPD-B505 Detectors
